69 viper stepside Empty 69 viper stepside

Post by R.A.D on Mon Sep 08, 2014 7:25 pm

well, i was waiting for rich to start his build thread.but i can't wait any longer.so here is mine
just a little teaser for you...

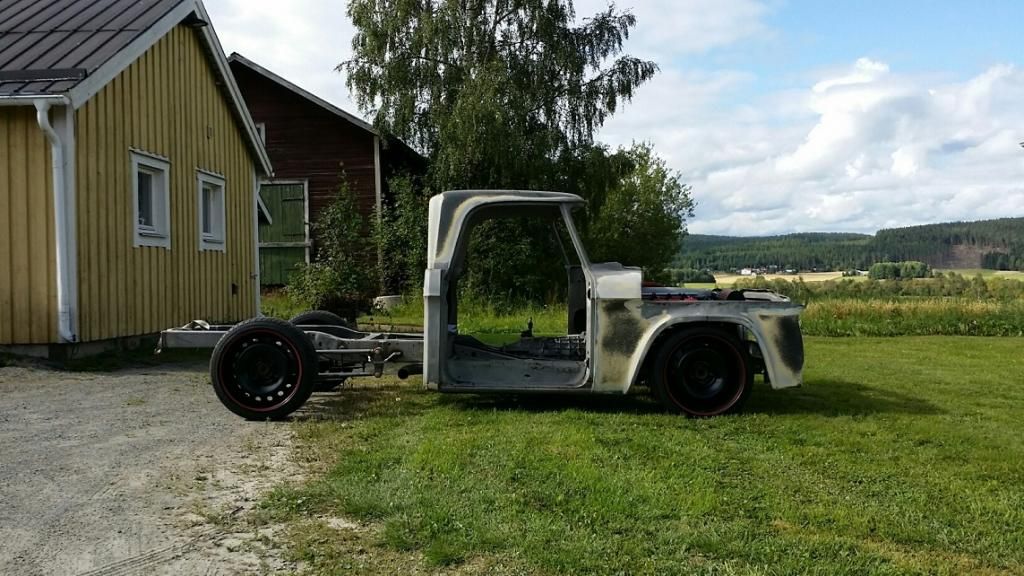

69 viper stepside 69v102_zps9bd912fe[/url]

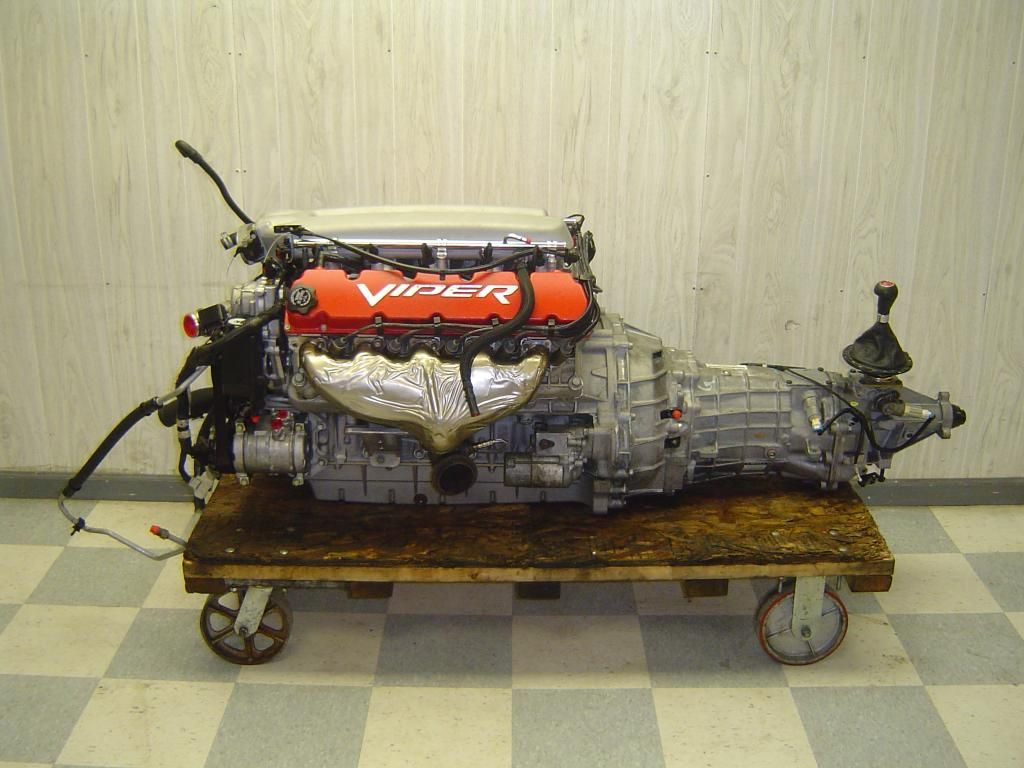

69 viper stepside <a href=69 viper stepside 69v1026_zps6da6ac6b" />


Last edited by R.A.D on Tue Sep 09, 2014 9:21 am; edited 1 time in total

_________________
NO WING NO PRAYER
R.A.D
R.A.D

Posts : 114
Join date : 2013-02-05

View user profile

Back to top Go down

69 viper stepside Empty Re: 69 viper stepside

Post by rich on Mon Sep 08, 2014 7:36 pm

i've been slowly collecting parts for my v10 build but you've been holding out LOL!!!!


Last edited by rich on Tue Sep 09, 2014 9:17 am; edited 1 time in total

_________________
USN RETIRED

69 viper stepside <a href=69 viper stepside 59dodge_zps72ab4768" />
rich
rich
Admin

Posts : 348
Join date : 2013-01-24

View user profile http://fordodgetrucksonly.forumotion.com

Back to top Go down

69 viper stepside Empty Re: 69 viper stepside

Post by Highwayman on Tue Sep 09, 2014 9:06 am

no waaaayyyyy. i'm subscribed
Highwayman
Highwayman

Posts : 29
Join date : 2014-09-09

View user profile

Back to top Go down

69 viper stepside Empty Re: 69 viper stepside

Post by rapidtransitrick on Fri Sep 12, 2014 1:06 am

this is off the hook.. Shocked
rapidtransitrick
rapidtransitrick

Posts : 116
Join date : 2013-01-24

View user profile

Back to top Go down

69 viper stepside Empty Re: 69 viper stepside

Post by R.A.D on Sat Sep 13, 2014 8:02 am

the frame was stripped down to it's bare self..

69 viper stepside 69_v1052

from there it is sand blasted to clean white metal

69 viper stepside 69_v1053
69 viper stepside 69_v1054

paper templates were made for future boxing plates

69 viper stepside 69_v1055
69 viper stepside 69_v1056

6 inches needed to be removed from the length so now was the time to do it

69 viper stepside 69_v1057
69 viper stepside 69_v1058

now the rest of the templates could be made
69 viper stepside 69_v1059
69 viper stepside 69_v1060
69 viper stepside 69_v1061
69 viper stepside 69_v1062
once the templates were finished and taped into place. a few measurements were made up front with te moc up of the spindle
69 viper stepside 69_v1063
69 viper stepside 69_v1064
69 viper stepside 69_v1065

it was realized through measuring that a new cradle must be used







Last edited by R.A.D on Wed Dec 10, 2014 3:24 pm; edited 3 times in total

_________________
NO WING NO PRAYER
R.A.D
R.A.D

Posts : 114
Join date : 2013-02-05

View user profile

Back to top Go down

69 viper stepside Empty Re: 69 viper stepside

Post by MoParJoel on Sat Sep 13, 2014 10:34 am

Wow, this definitely has potential for the sickest Dodge truck ever made! What grill you going with? I hope its a 70/71. Thats my favorite 61-71 front… lol

_________________
MoPar or NO car!
MoParJoel
MoParJoel

Posts : 115
Join date : 2013-02-07
Location : North Las Vegas

View user profile

Back to top Go down

69 viper stepside Empty Re: 69 viper stepside

Post by R.A.D on Sat Sep 13, 2014 1:32 pm

MoParJoel wrote:Wow, this definitely has potential for the sickest Dodge truck ever made! What grill you going with? I hope its a 70/71. Thats my favorite 61-71 front… lol

the grill will be 69

_________________
NO WING NO PRAYER
R.A.D
R.A.D

Posts : 114
Join date : 2013-02-05

View user profile

Back to top Go down

69 viper stepside Empty Re: 69 viper stepside

Post by rapidtransitrick on Sun Sep 14, 2014 10:37 am

well get back to work!! you have our attention
rapidtransitrick
rapidtransitrick

Posts : 116
Join date : 2013-01-24

View user profile

Back to top Go down

69 viper stepside Empty Re: 69 viper stepside

Post by dodgeboy on Sun Sep 14, 2014 5:48 pm

i'm suscribed
dodgeboy
dodgeboy

Posts : 39
Join date : 2014-06-04

View user profile

Back to top Go down

69 viper stepside Empty Re: 69 viper stepside

Post by R.A.D on Sun Oct 05, 2014 7:01 pm

at this point the decision was made to move on to the rear.

69 viper stepside 69_v1066
69 viper stepside 69_v1067
69 viper stepside 69_v1068
a four link is in order for this project

69 viper stepside 69_v1069
69 viper stepside 69_v1070

brackets for this link system will be tack welded for a trial fit

69 viper stepside 69_v1071
69 viper stepside 69_v1072
69 viper stepside 69_v1073
69 viper stepside 69_v1074
69 viper stepside 69_v1075

then the brackets were welded permanently

69 viper stepside 69_v1076
69 viper stepside 69_v1077
69 viper stepside 69_v1078
69 viper stepside 69_v1082
69 viper stepside 69_v1085
69 viper stepside 69_v1086
69 viper stepside 69_v1087

now came the istallation of a watts link. this will help keep things centered and stable

69 viper stepside 69_v1088
69 viper stepside 69_v1089

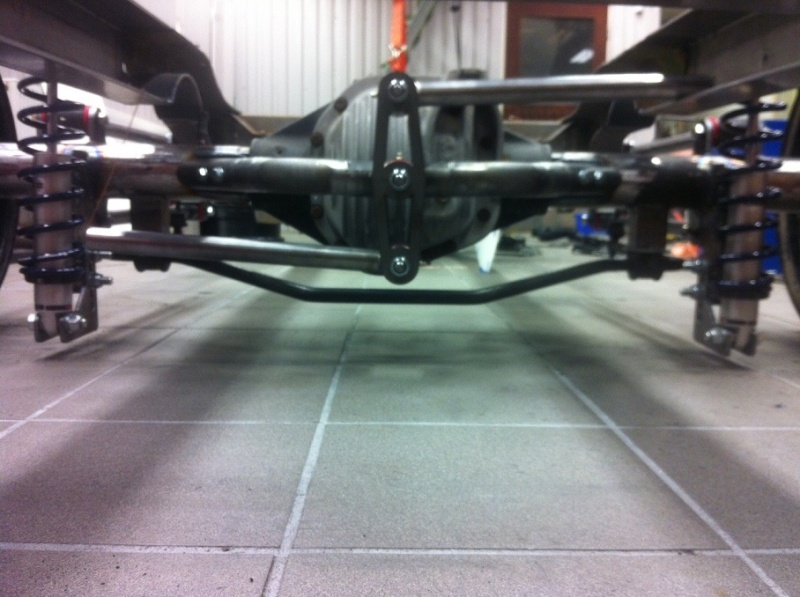

now the coi; over were taking their place

69 viper stepside 69_v1090
69 viper stepside 69_v1091
69 viper stepside 69_v1092
69 viper stepside 69_v1093


Last edited by R.A.D on Fri Dec 12, 2014 7:34 pm; edited 10 times in total

_________________
NO WING NO PRAYER
R.A.D
R.A.D

Posts : 114
Join date : 2013-02-05

View user profile

Back to top Go down

69 viper stepside Empty Re: 69 viper stepside

Post by rich on Sun Oct 05, 2014 7:14 pm

cool, looks like somebody means business Surprised

_________________
USN RETIRED

69 viper stepside <a href=69 viper stepside 59dodge_zps72ab4768" />
rich
rich
Admin

Posts : 348
Join date : 2013-01-24

View user profile http://fordodgetrucksonly.forumotion.com

Back to top Go down

69 viper stepside Empty Re: 69 viper stepside

Post by rapidtransitrick on Mon Oct 06, 2014 6:54 am

don't stop there Razz
rapidtransitrick
rapidtransitrick

Posts : 116
Join date : 2013-01-24

View user profile

Back to top Go down

69 viper stepside Empty Re: 69 viper stepside

Post by Highwayman on Mon Oct 06, 2014 7:14 am

Nice work
Highwayman
Highwayman

Posts : 29
Join date : 2014-09-09

View user profile

Back to top Go down

69 viper stepside Empty Re: 69 viper stepside

Post by froy on Tue Oct 07, 2014 7:00 am

holy moly i gotta see this

_________________
froy

[size=18]chute'um...chute'um
froy
froy

Posts : 49
Join date : 2013-02-02

View user profile

Back to top Go down

69 viper stepside Empty Re: 69 viper stepside

Post by R.A.D on Mon Oct 13, 2014 6:49 pm

templates were made for the inside frame rails
69 viper stepside 69_v1010
69 viper stepside 69_v1011

and then the patterns were transfered to steel plate
69 viper stepside 69_v1012
69 viper stepside 69_v1013
and then tac welded into place
69 viper stepside 69_v1014

_________________
NO WING NO PRAYER
R.A.D
R.A.D

Posts : 114
Join date : 2013-02-05

View user profile

Back to top Go down

69 viper stepside Empty Re: 69 viper stepside

Post by R.A.D on Mon Oct 13, 2014 7:00 pm

then the boxing plates were welded solid69 viper stepside 69_v1016


_________________
NO WING NO PRAYER
R.A.D
R.A.D

Posts : 114
Join date : 2013-02-05

View user profile

Back to top Go down

69 viper stepside Empty Re: 69 viper stepside

Post by R.A.D on Mon Oct 13, 2014 7:14 pm

pre fit engine and trans to build tunnel brace
69 viper stepside 69_v1017
69 viper stepside 69_v1018

69 viper stepside 69_v1019
69 viper stepside 69_v1020
69 viper stepside 69_v1021
69 viper stepside 69_v1022
69 viper stepside 69_v1023
69 viper stepside 69_v1024

_________________
NO WING NO PRAYER
R.A.D
R.A.D

Posts : 114
Join date : 2013-02-05

View user profile

Back to top Go down

69 viper stepside Empty Re: 69 viper stepside

Post by rapidtransitrick on Tue Oct 14, 2014 8:32 am

that's some nice work. keep it up
rapidtransitrick
rapidtransitrick

Posts : 116
Join date : 2013-01-24

View user profile

Back to top Go down

69 viper stepside Empty Re: 69 viper stepside

Post by rich on Tue Oct 14, 2014 5:17 pm

rapidtransitrick wrote:that's some nice work. keep it up

x2

_________________
USN RETIRED

69 viper stepside <a href=69 viper stepside 59dodge_zps72ab4768" />
rich
rich
Admin

Posts : 348
Join date : 2013-01-24

View user profile http://fordodgetrucksonly.forumotion.com

Back to top Go down

69 viper stepside Empty Re: 69 viper stepside

Post by BAMMD100 on Thu Oct 16, 2014 1:17 am

Bad Ass! Really nice work.

BAMMD100

Posts : 23
Join date : 2014-10-15

View user profile

Back to top Go down

69 viper stepside Empty Re: 69 viper stepside

Post by RidnLow on Thu Oct 16, 2014 7:44 am

love the progress.

RidnLow

Posts : 21
Join date : 2014-09-19

View user profile

Back to top Go down

69 viper stepside Empty Re: 69 viper stepside

Post by R.A.D on Thu Oct 16, 2014 7:56 am

BAMMD100 wrote:Bad Ass! Really nice work.

thanks. your truck is Bad Ass too

_________________
NO WING NO PRAYER
R.A.D
R.A.D

Posts : 114
Join date : 2013-02-05

View user profile

Back to top Go down

69 viper stepside Empty Re: 69 viper stepside

Post by R.A.D on Fri Oct 17, 2014 6:01 pm

this is how the front suspension came about
69 viper stepside 69_v1025
69 viper stepside 69_v1026
69 viper stepside 69_v1027
69 viper stepside 69_v1028
69 viper stepside 69_v1029
69 viper stepside 69_v1032
69 viper stepside 69_v1033
69 viper stepside 69_v1034
69 viper stepside 69_v1035

_________________
NO WING NO PRAYER
R.A.D
R.A.D

Posts : 114
Join date : 2013-02-05

View user profile

Back to top Go down

69 viper stepside Empty Re: 69 viper stepside

Post by R.A.D on Fri Oct 17, 2014 6:18 pm

mocking up of upper control arms
69 viper stepside 69_v1041

69 viper stepside 69_v1040
69 viper stepside 69_v1042
69 viper stepside 69_v1043
69 viper stepside 69_v1044
69 viper stepside 69_v1045
69 viper stepside 69_v1046
69 viper stepside 69_v1047
69 viper stepside 69_v1048
69 viper stepside 69_v1049
69 viper stepside 69_v1050
69 viper stepside 69_v1051










_________________
NO WING NO PRAYER
R.A.D
R.A.D

Posts : 114
Join date : 2013-02-05

View user profile

Back to top Go down

69 viper stepside Empty Re: 69 viper stepside

Post by rich on Fri Oct 17, 2014 6:51 pm

i new you were creative. i'm loving this build

_________________
USN RETIRED

69 viper stepside <a href=69 viper stepside 59dodge_zps72ab4768" />
rich
rich
Admin

Posts : 348
Join date : 2013-01-24

View user profile http://fordodgetrucksonly.forumotion.com

Back to top Go down
