Making Ugly Cool Again! 53 Dodge Build

Post by Pilothouse_Mike on Thu Feb 21, 2013 8:38 pm

I am transferring this build over from the HAMB upon request. It will take me a very long time to transfer my write up over, I will also be adding updates exclusive to this forum which I have not added to the other build. But enough jabbering, here it goes...


Well I've been waiting to post this until we started making decent progress so here it is. I've been planning this thing in my head for a year or so and alot has changed but I'm still hoping it turns out alright. This is my first build and I wanted to keep a log of my progress so I hope it isnt too boring!

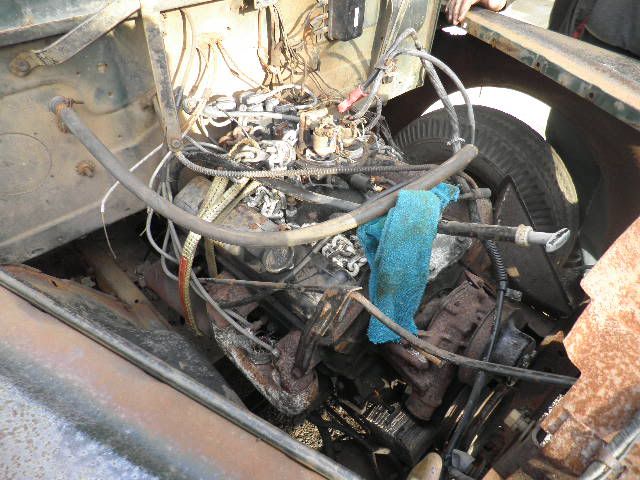

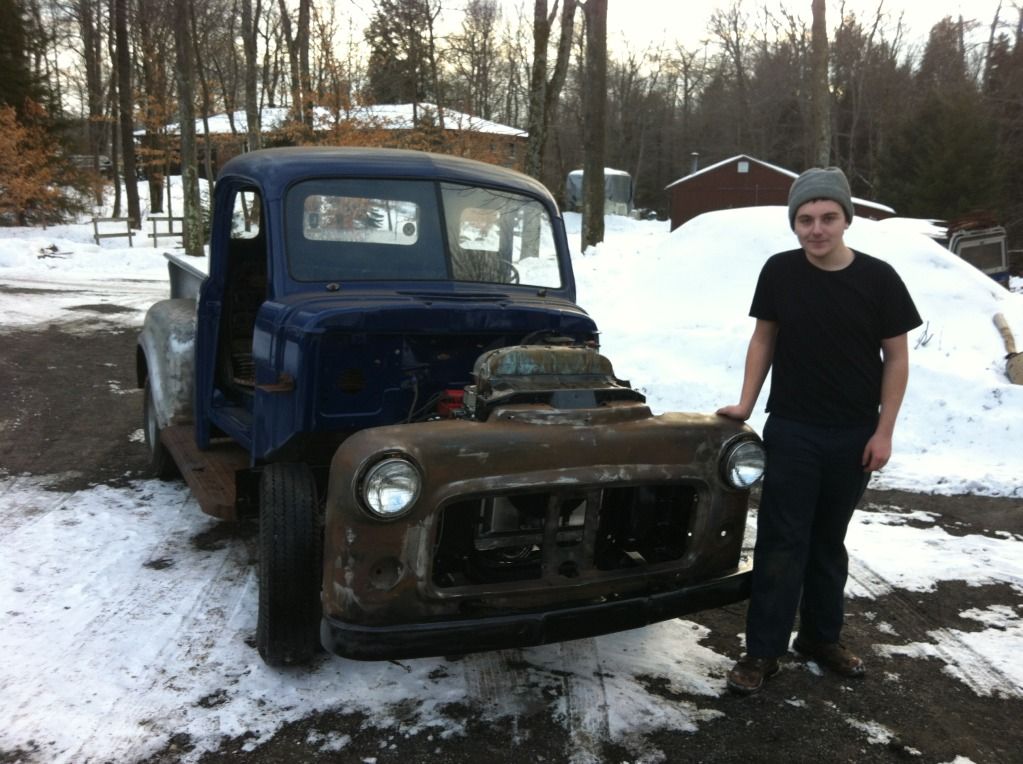

Here is basically what I started with...



The original plan was too lower it a bit and get it moving highway speed with the old flathead 6. While of course updating the brakes.

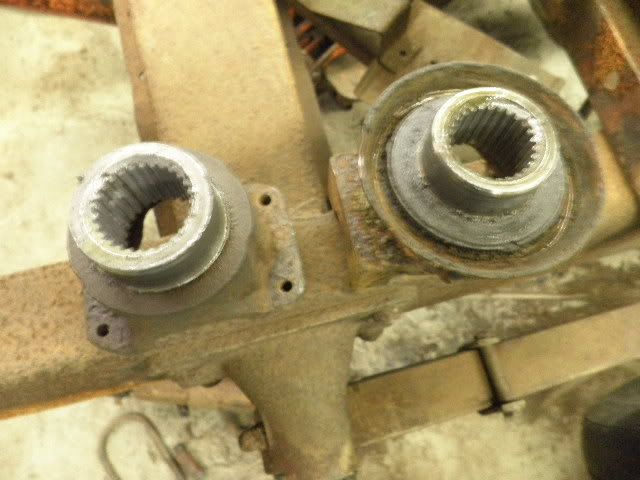

Soooo... First thing we did was get a dropped axle from Sid along with new king pins. It was a little confusing at first but we cut up another pack of leaf springs to make crude spacers. This dropped the truck down and gave it a slight rake. I will post a tech write up of the drop axle installation if you guys would like, it is quite confusing working your way through it on your own, but it should be a breeze if you know what you're doing! On to the engine, like I said the original idea was to run the flathead with a t-5 behind it but when we took the head off there was a big chunk out of one of the cylinders. We tossed around the idea of putting a big block flathead 6 in it but then my dad suggested an old gmc van our neighbor had. He asked him about it and he said if you can get it out of here, you can have it. So that is the explanation for why it has a Chevy engine. I don't mean to sound like an asshole but I don't care what anyone thinks about the small block chevy, it was free, parts are cheap, and it is one of the most traditional engines out there. So it is staying, if you don't like it hit that big red X in the top right of your screen.

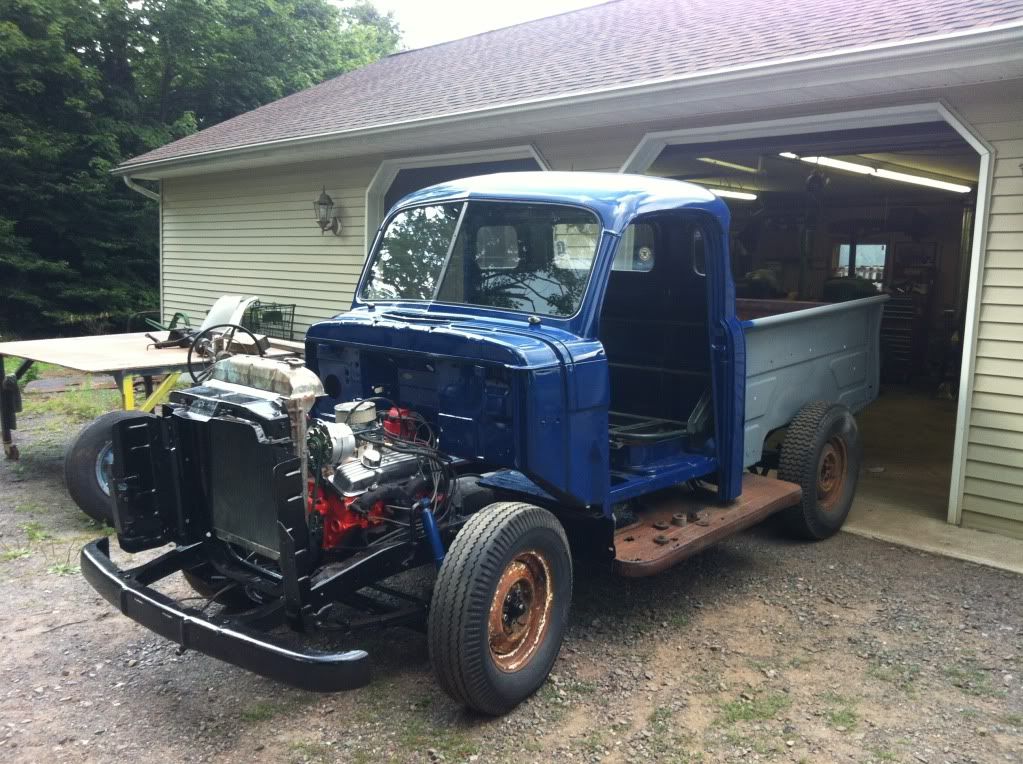

Dropping the engine in for the first time...



It fit really good, no cutting was needed to get it to fit, another plus for the chevy... The engine originally had a throttlebody and a computer and shit but that isnt going to be on there for long. The exhaust manifolds that were on it arent going to work either.

I had toyed around with the idea of making a hurst style mount for the front of the engine utilizing pieces of the stock engine mounts. I decided to scrap the idea and go for the side mounts on the engine instead, more on that later on. The rearend needed to be updated to handle the v8 powerplant so I had read DanBabb used a 90's Jeep rearend in his hemi powered pilothouse so I stole the idea for this one. Here is the Jeep rear installed...



Its a great fit, same as original. As for the driveshaft I had a 90 Dakota driveshaft at hand which also had a larger universal joint than the Jeep so I decided on that. Jeep on the left, Dakota on the right...

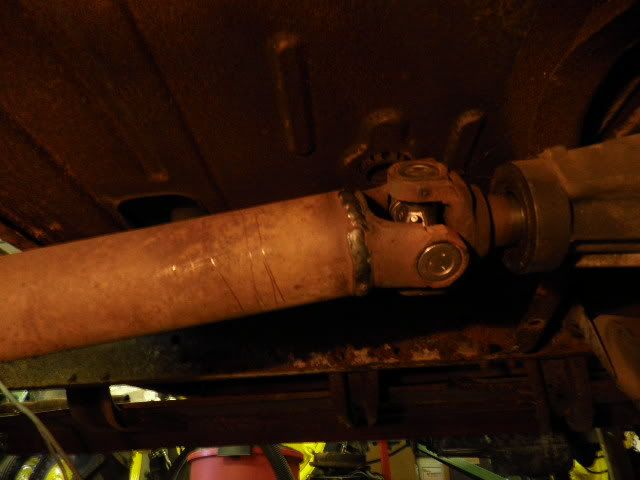

The Dakota driveshaft was a few inches too long so we cut the end off and welded the chevy slip yoke in the other end.



And there you have it a one off th400 to Jeep driveshaft for exactly $0. Just to keep it in perspective at this point in the build there may be $300 in the running gear minus the front end that was way more...



I am really skipping around through all the info I have from my build to make this write up fairly straight forward. If you would like my to elaborate on anything, to not hesitate to ask...


Last edited by Pilothouse_Mike on Thu Feb 21, 2013 10:47 pm; edited 1 time in total

Pilothouse_Mike

Posts : 7
Join date : 2013-02-21
Age : 23
Location : Tobyhanna, Pa

View user profile

Back to top Go down

Making Ugly Cool Again! 53 Dodge Build

Post by Pilothouse_Mike on Thu Feb 21, 2013 9:16 pm

Part 2...

After seeing everything rusty for so long it was nice to get it all painted. The entire running gear is painted with KBS gloss black because this truck is being built to be a driver. If you haven't tried this stuff I strongly recommend it...



I also ordered a rusty hope disc brake kit for the front end. It is totally worth the money if you are dead set on running the stock axle and spindles like I was but everything went smooth on the install, I just needed to have a spacer made for the inside wheel bearing. Other than that it was pretty painless...



Also the emergency brakes off the Jeep rearend were also fitted so that it could be hooked up with the stock handle, I don't have any pictures of it off hand. Again if enough of you guys want a tech on that, I would gladly do it...

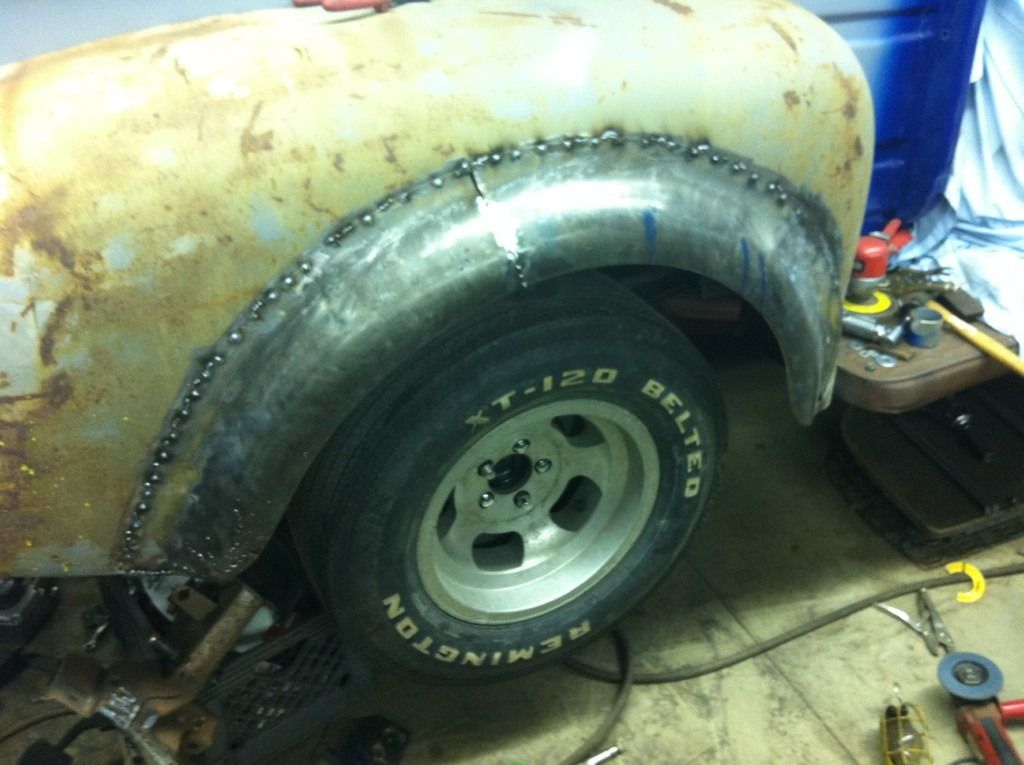

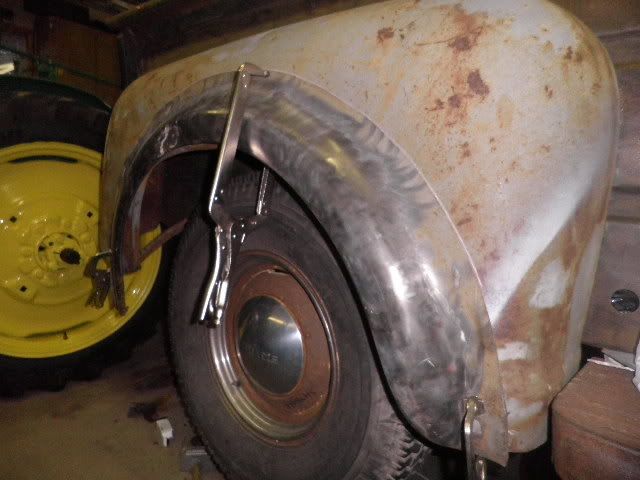

Now onto the sheet metal repair/ modification... I did a lot of patching on the bed and also got it ready for an oak floor, I was dead set on re-radiusing the rear fenders with the front fender opening. If you followed my original thread, these pictures won't make much sense to you because they are pretty out of order. I am only posting them this way so I can show the start and finished product together....



Thats the basic idea....

And the finished product before metal finishing...



My original cab was pretty rough in the floor department, I was scimming the classifieds on the pilothouse forum and found a gent in NY selling a 5 window cab from out west for a good price. I jumped on it because I had gotten corner windows for basically nothing and I always wanted a 5 window cab. Here it is fully painted in the final color...

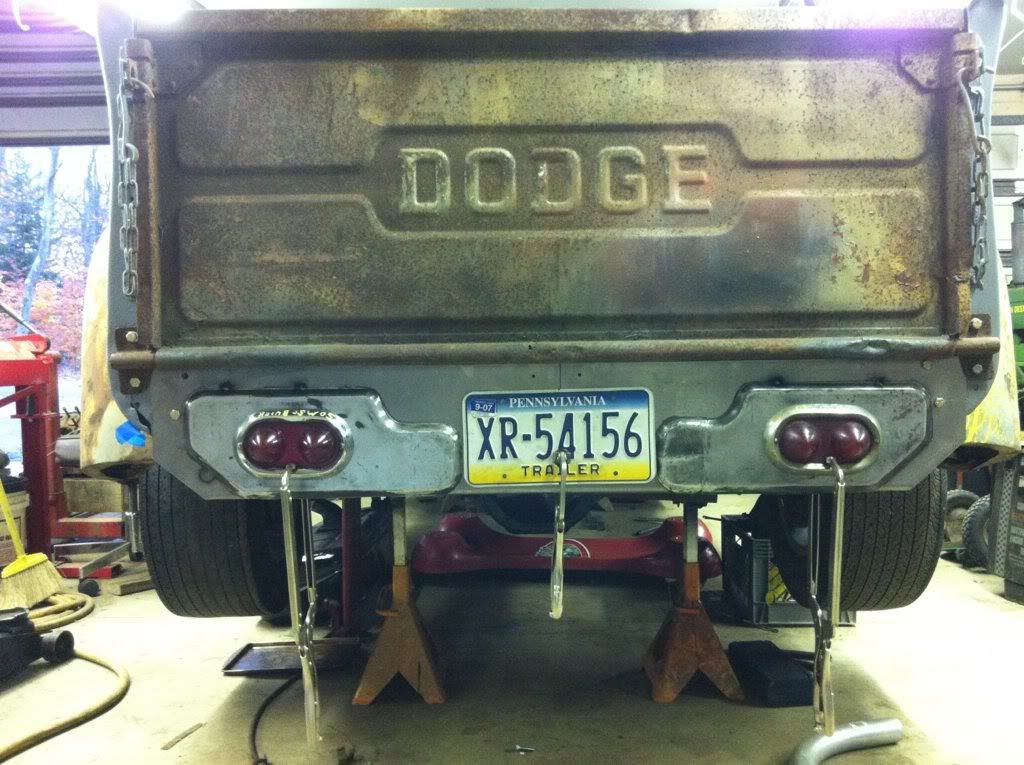

I wanted to use buick tail lights real bad so instead of just slapping them on I came up with a custom panel under the tailgate. I love the look of it, the picture is only of the mock up because I still haven't finished it yet but I am currently working on it.



In the mean time all the brakes and steering is finished we took it out for the first time. This is yours truly standing with the truck on its first time out.

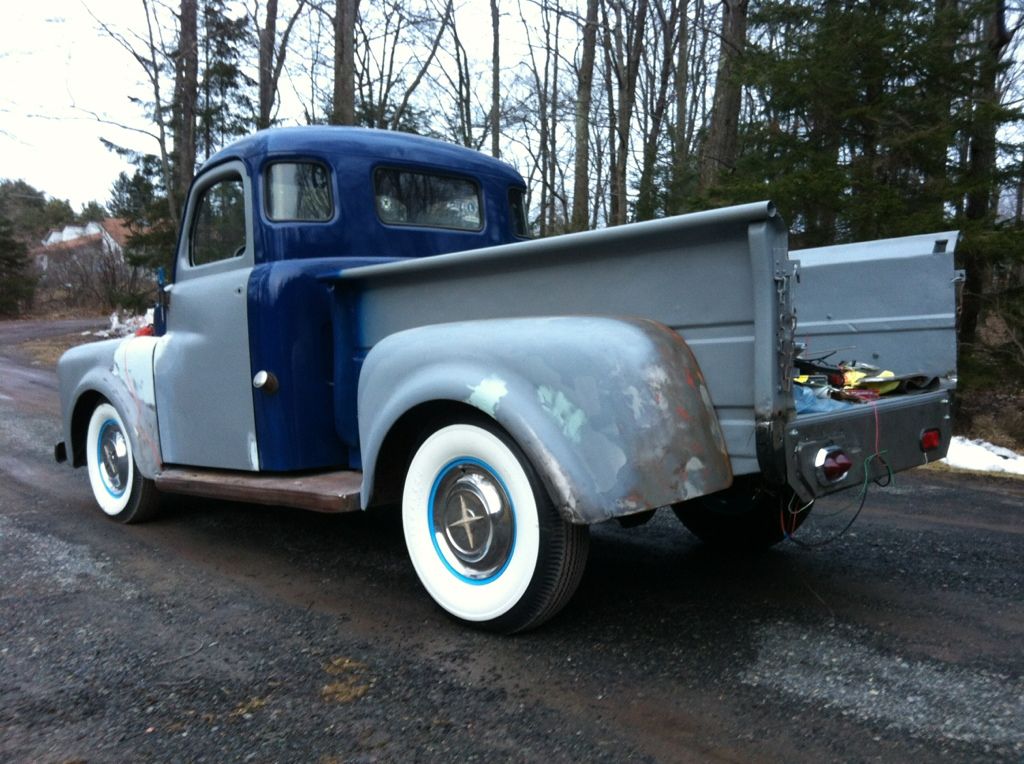

And finally this is the most recent photo of the truck I have on my photobucket



I have been making a TON of progress recently including getting my front wheels painted, and mounted with brand new firestone whitewalls and my full hub caps. I am also in the process of finishing up the rear panel and doing the body work on the whole truck. I will try to get more photos uploaded to continue the thread if you all would like. As for now that is the birth of "The Gray Nosed Goat" coined by my buddy nikkyp. Thanks for checking it out and wanting me to post my build on your site!

Pilothouse_Mike

Posts : 7
Join date : 2013-02-21
Age : 23
Location : Tobyhanna, Pa

View user profile

Back to top Go down

Re: Making Ugly Cool Again! 53 Dodge Build

Post by rich on Fri Feb 22, 2013 7:14 am

cool truck mike, welcome and thanks for sharing your build i can't wait to see more!

_________________
USN RETIRED

" />
avatar
rich
Admin

Posts : 346
Join date : 2013-01-24

View user profile http://fordodgetrucksonly.forumotion.com

Back to top Go down

Re: Making Ugly Cool Again! 53 Dodge Build

Post by R.A.D on Fri Feb 22, 2013 10:10 am

This interesting. I'm subscribed

_________________
NO WING NO PRAYER
avatar
R.A.D

Posts : 114
Join date : 2013-02-05

View user profile

Back to top Go down

Re: Making Ugly Cool Again! 53 Dodge Build

Post by rich on Wed Feb 27, 2013 6:58 pm

any updates mike?

_________________
USN RETIRED

" />
avatar
rich
Admin

Posts : 346
Join date : 2013-01-24

View user profile http://fordodgetrucksonly.forumotion.com

Back to top Go down

Re: Making Ugly Cool Again! 53 Dodge Build

Post by Pilothouse_Mike on Wed Feb 27, 2013 9:50 pm

There has been some progress Rich, and I have been taking pictures. Unfortunately photobucket has entirely changed their whole site and I am having trouble getting the pictures off my phone and onto my album. I am trying to get the hang of it and hopefully I can post some new pics up soon.

Pilothouse_Mike

Posts : 7
Join date : 2013-02-21
Age : 23
Location : Tobyhanna, Pa

View user profile

Back to top Go down

Re: Making Ugly Cool Again! 53 Dodge Build

Post by Pilothouse_Mike on Wed Feb 27, 2013 10:22 pm

Actually a little bit after I posted that reply I figured out how to get the photos off my phone onto the computer. So here it is....

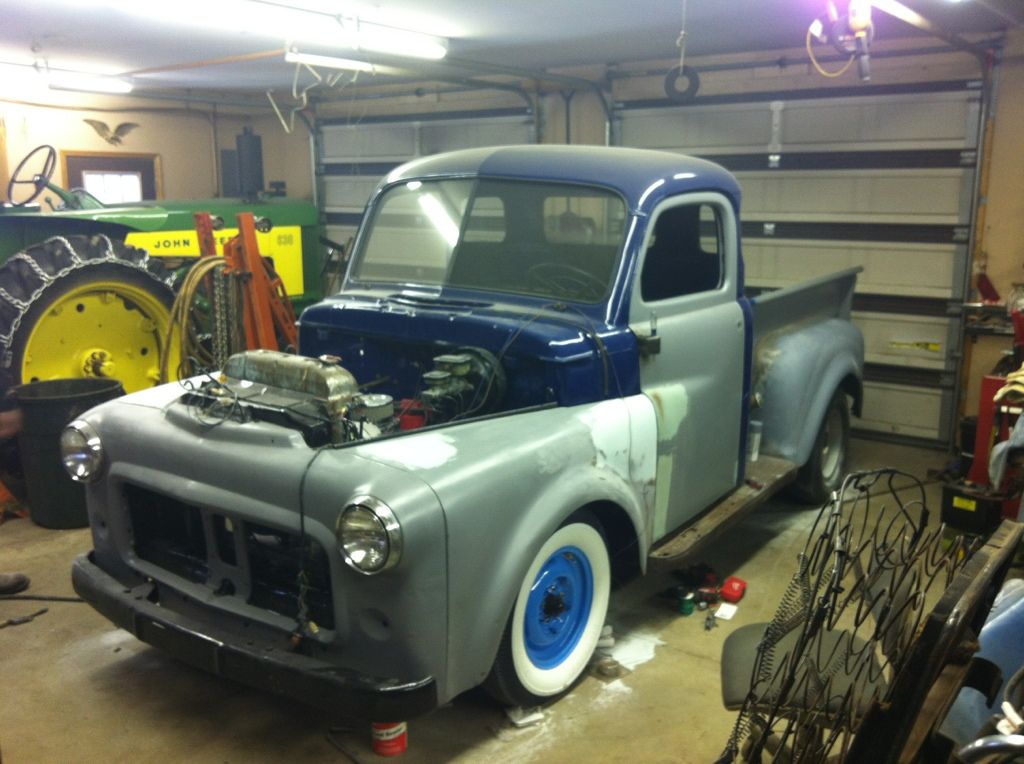

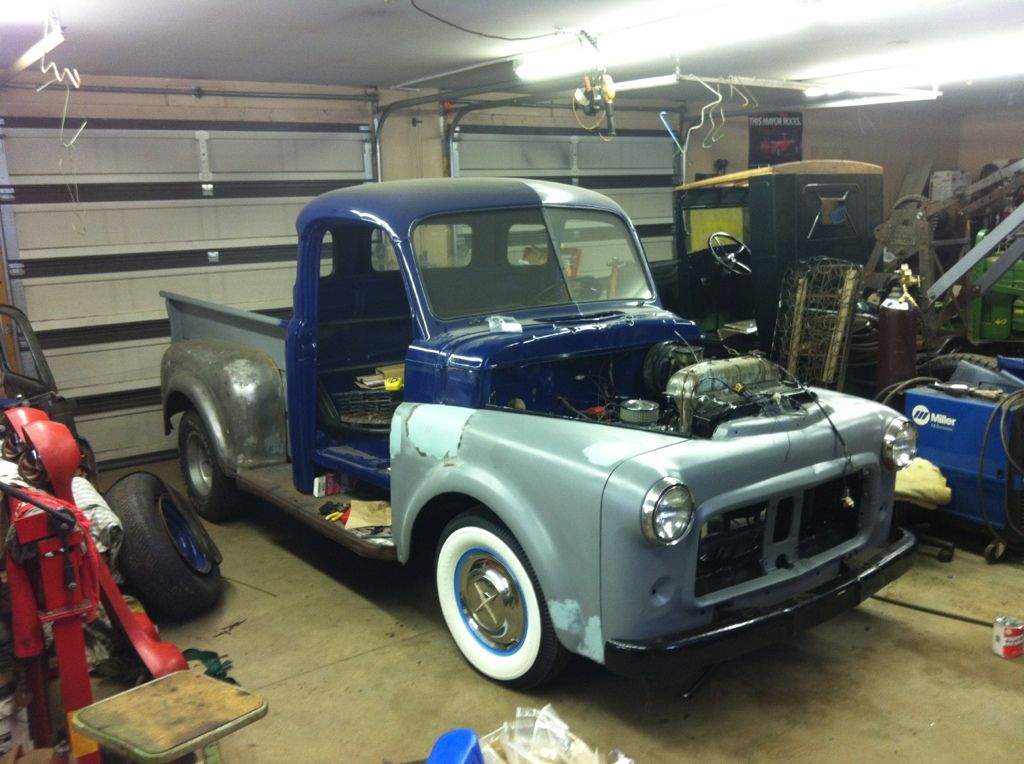

Here is what the rolling stock will be looking like... Powder blue wheels, 3 1/4 white walls, and the most under rated hubcaps around, guess em if you can mopar guys!
